Accessories
| Relative Humidity |
0 to 90% non-condensing |
Battery/Charger
Connections
| SDI Auto Switching |
Automatically detects SD, HD, or 6G-SDI |
Control
| Control Method |
Mini switches or USB software |
Environment
| Operating Temperature |
32 to 104°F / 0 to 40 °C |
| Storage Temperature |
-4 to 113°F / -20 to 45 °C |
HDMI Video Standards
| HDMI Format Support |
UHD 4K
3840 x 2160p: 30/29.97/25/24/23.98
HD
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SD
NTSC: 525i/59.94
PAL: 625i/50
HD down-conversion |
Input
| Audio Inputs |
Analog: 2 channels with 1 x 1/4" jack per channel
AES/EBU: 4 channels with 1 x 1/4" jack |
| Video Inputs |
1 x HDMI, Type A |
Output
Power
| Power Consumption |
4.44 W |
| Power Supply |
12 VDC |
SDI Video Standards
| Multiple Rate Support |
Auto detection of SD, HD, 3G, or 6G-SDI signals |
| SDI Audio Sampling |
24-bit, 48 kHz |
| SDI Color Precision |
4:2:2 |
| SDI Color Space |
YUV |
| SDI Compliance |
SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081
ITU-R BT.656 and ITU-R BT.601 |
| SDI Video Sampling |
4:2:2 |
Standards
| Format Support |
DCI 4K
24p
UHD 4K
3840 x 2160p: 30/29.97/25/24/23.98
HD
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SD
NTSC: 525i/59.94
PAL: 625i/50 |
| HDMI Color Precision |
4:2:2
4:4:4 |
| HDMI Color Space |
YUV and RGB |
General
| Dimension |
4.49 x 3.63 x 0.90" / 11.40 x 9.22 x 2.29 cm |
| Recloking |
Yes |
| SDI Video Rates |
Switchable between SD, HD, Ultra HD and DCI 4K |
| Weight |
8.6 oz / 243.8 g |
| Warranty |
1 Year Warranty |

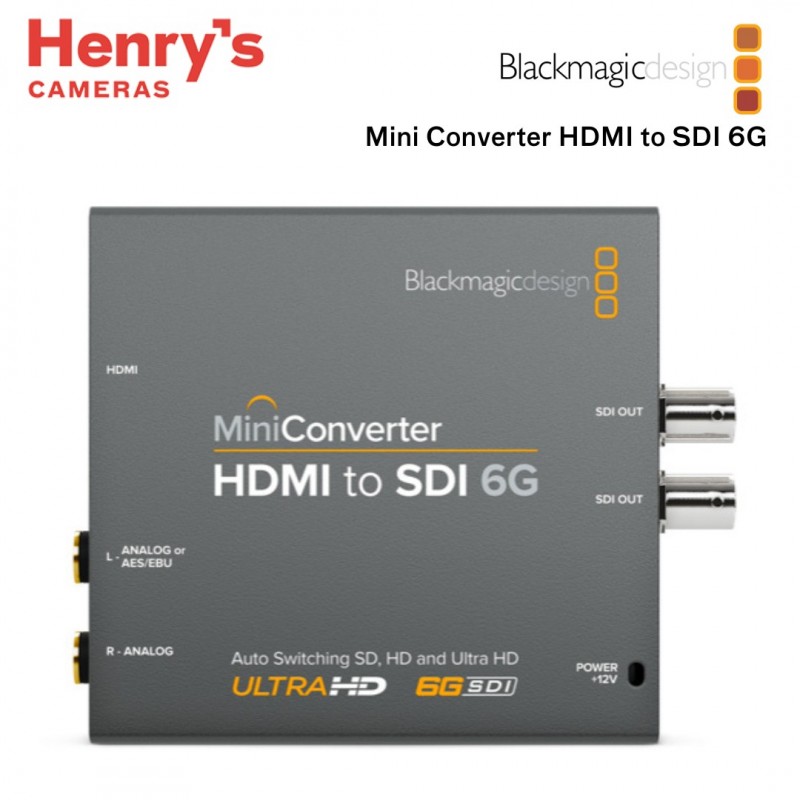

The Blackmagic Design HDMI to SDI 6G Mini Converter converts HDMI to SD, HD, 3G, or 6G-SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 30p. This is useful for connecting consumer devices that output HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post-production, and professional AV applications.
Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. The two 6G-SDI outputs also support SD and HD-SDI signals for integration into existing workflows. Both 6G-SDI outputs send duplicate signals. Audio is embedded in the SDI output from either the HDMI input or from the two 1/4" input jacks which support four channels of AES/EBU digital audio or two channels of analog audio.
The Mini Converter's settings are controlled using the built-in switches or via USB using the control software for Max OS X or Windows computers, which can be downloaded on Blackmagic Design's website. The USB port also enables the firmware to be updated.
The device is powered by an included 12V power supply and includes international socket adapters.
Additional Features
- 4:2:2 Sampling and color precision
- HD scaler and SD down-conversion
- 24-bit, 48 kHz audio sampling
- Compliant with SMPTE 259M/292M/296M/372M/424M/425M Level A or B/SMPTE ST-2081, and ITU-R BT.656/BT.601 standards
