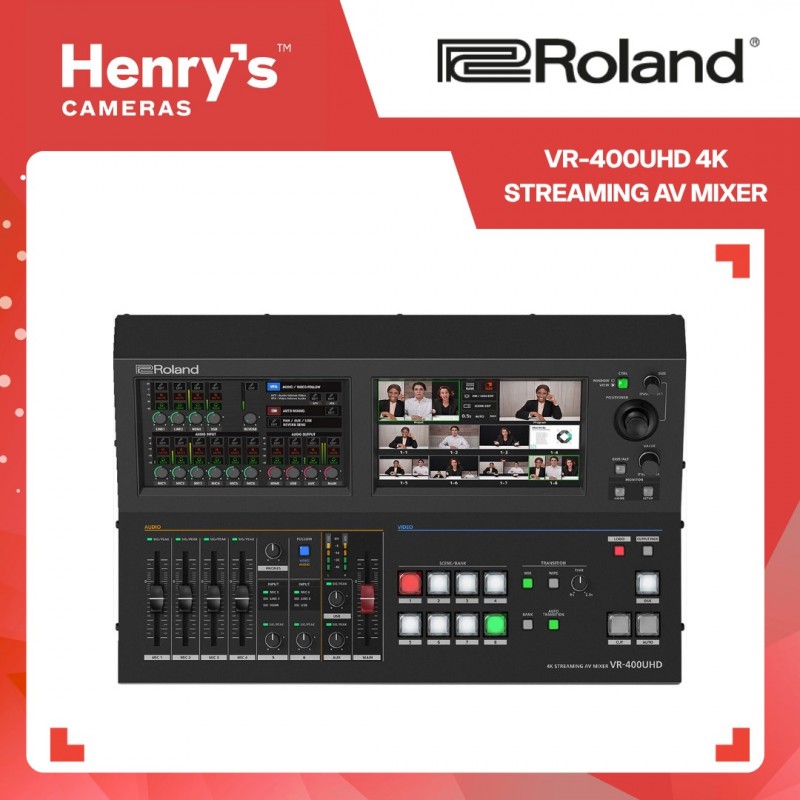

Add a professional live event AV mixer to your production kit with this VR-400UHD 4K Streaming AV Mixer from Roland. Combining the advanced functions of a video switcher and an audio mixer, the rack-mountable VR-400UHD is great for live education events, houses of worship, council meetings, corporate events, concerts, and other live performance venues. The switcher offers the capability of live streaming via USB-C to popular online forums, such as Facebook and Twitch as well a working as a webcam.

Smooth Workflow

With its dual touchscreens, smart panel design, and professional features, the VR-400UHD enables anyone to deliver flawless hybrid presentations with top production values.

Touch and Go

Two 7" touchscreens make it simple to monitor video content and execute operations with quick touches. In the default PGM/PST mode, you can monitor and select up to eight video scenes on the right screen and access various video switching and audio functions on the left. Switching to Dual mode allows you to send video to both displays, which is great for events where you need to operate multiple presentation screens at once.

Tactile Controls

The VR-400UHD panel also includes a large selection of tactile controls to complement the touch workflow. The right side is filled with video controls, including dedicated scene/bank buttons and controls for transitions, keying, sizing, and more. Prime audio functions are easily controlled on the left side via familiar hands-on faders and knobs.

Present and Livestream in 4K

The VR-400UHD supports resolutions up to 4K60, the standard for high-quality video, allowing you to connect 4K cameras and feed 4K displays and recorders. HDR and SDR formats are also supported, with automatic conversion into your 4K workflow. And with the USB-C webcam output (SDR only) and integrated USB 3.2 Gen 2 support, you can simultaneously livestream to popular platforms on your computer.

Powerful AV Connectivity

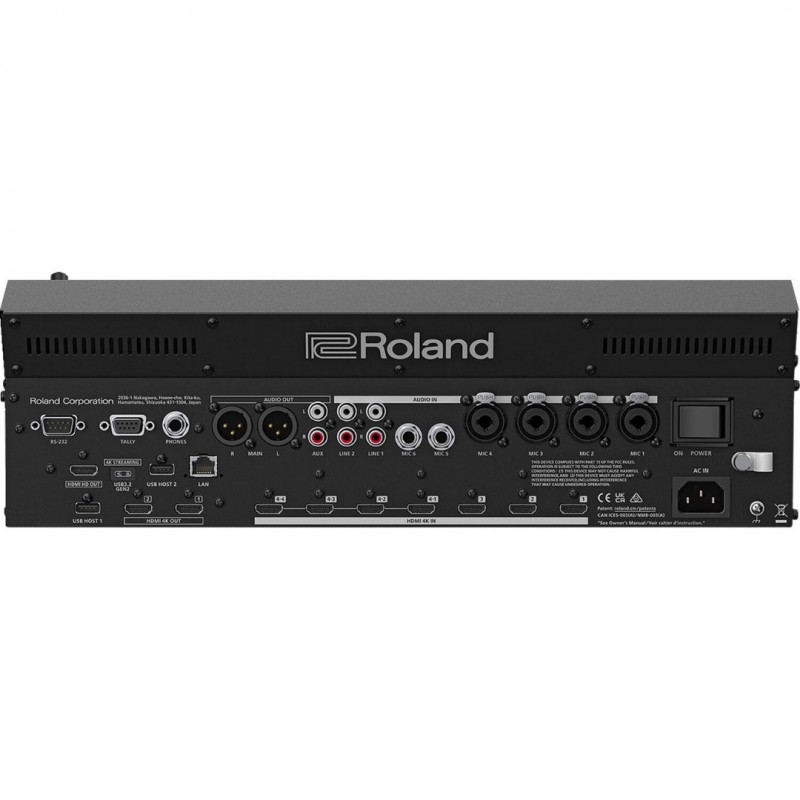

With its loaded rear panel, the VR-400UHD offers the audio and video connectivity you need to handle a variety of production situations without external mixers, switchers, and other gear.

Compact Design

The VR-400UHD stows easily into a carrying bag, and the compact footprint allows you to set up in the tightest production locations. It also fits a standard 19" rack case, ready to mount in a slide-out tray or directly onto rack rails.

4K Video

Offering full 4K video support throughout, the VR-400UHD allows you to work in the highest video quality with no compromises.

Seven 4K HDMI Inputs

The VR-400UHD is equipped with seven HDMI inputs with up to 4K60 resolution, and you can use up to four inputs at once to create video compositions. Inputs 1-3 are always available, while cameras and other devices connected to the additional four inputs can be selected one at a time as needed. All inputs feature built-in scalers, letting you freely mix 4K/HD, HDR/SDR, and Rec.2020/Rec.709 devices with no need to worry about format conversion.

Easy Switching with Scenes

The powerful and intuitive scene function allows you to create complex video compositions and recall them using the VR-400UHD's touch panel or dedicated buttons. Each scene can include one background layer and two picture-in-picture and key layers, and the layout, size, and cropping can be edited while watching the input video.

Two Touchscreen Modes

In PGM/PST mode, you can switch between scenes using transition effects such as cuts, dissolves, and wipes for a polished look. Eight banks provide a total of 64 scenes, with eight scenes at a time displayed on the right touch display. Using Dual mode, you can display PGM1 on the right screen and PGM2 on the left and assign them to HDMI and USB outputs. This is great for working with separate LED panels on the left and right sides of a stage, allowing you to monitor and control both at once.

Import and Display Still Images

Enhance events with JPEG, BMP, and PNG still images imported via USB flash media. Up to eight images can be stored in the VR-400UHD's internal memory, ready for displaying transitions between presenters, graphics during breaks, and transparent PNGs for titles and lower thirds.

One Camera, Multiple Looks

If your production requires a wide shot of the stage, a medium shot of a speaking panel, and close-ups of each speaker, the VR-400UHD has you covered with built-in Region of Interest [ROI]. This allows you to point a single 4K camera and use the VR-400UHD's input sharing and scaling functions to crop out up to eight unique shots, which you can assign to scenes for instant switching.

Flexible HDMI Outputs

The VR-400UHD features two 4K HDMI outputs with support for downscaling to FHD, and you can assign PGM or PST to each independently. There's also a dedicated HDMI HD output, which outputs the same image as the PGM/PST touchscreen at a fixed resolution of 720p. This output is perfect for generating operation previews in larger-scale installations.

4K USB-C Livestreaming

The high-performance USB-C output is ready for all your livestreaming needs, with USB 3.2 Gen 2 support for streaming at resolutions up to 4K30. The VR-400UHD is recognized as a standard webcam on your computer when connected-just select it as the video and audio sources in your preferred platform and start streaming. The USB output features a dedicated logo function, allowing you to embed custom characters in the video during streams.

Please note: 4K livestreaming requires a USB 3.2 Gen 2 (10 Gb/s) cable, a computer with USB 3.2 Gen 2 support, and network bandwidth that can support a 4K data stream. When using a USB 3.0 or 3.2 Gen 1 cable, the maximum output format is 1080p60.

Professional Audio Mixing

The VR-400UHD is equipped with a professional audio mixer with 14 simultaneous channels and a full complement of acclaimed Roland sound-shaping tools.

Multi-Channel Audio Inputs

Comprehensive analog audio connectivity includes four balanced XLR-1/4" combination jacks with high-quality mic preamps and phantom power. Two additional mic inputs are available on 1/4" TRS jacks, plus two stereo RCA input pairs for connecting line-level devices. It's also possible to mix the embedded digital audio from sources connected via HDMI and USB.

Hands-On Mixing

The left side of the VR-400UHD panel includes faders and knobs for the audio inputs, master output, and headphones, providing grab-and-go control for smooth operation during events. The touchscreen above provides further control with fast access to mute, solo, and deeper parameters for each channel.

Powerful Sound Processing

Comprehensive EQ and dynamics processing is provided on every channel for shaping and polishing sounds. Powerful problem-solving tools are also available, including automatic feedback control, audio sync alignment, de-essing, noise suppression, and more.

Automatically Follow the Action

When there are many presenters, you need to follow the action and switch audio and video together. The automated video switching and audio mixing features in the VR-400UHD make this complicated task simple, greatly easing your workload and creating a smooth production experience.

Remote Control

The VR-400UHD supports extended workflows with dedicated software apps and remote device connections.

IP Control

Browser-based remote control software lets you operate the switcher and monitor scene previews from a Mac or Windows computer via a LAN connection.

Serial Control

Seamlessly integrate with system installations using the RS-232, LAN, and tally connectors.

Applications

Education

The VR-400UHD excels at working with video content on large screens in auditoriums, gymnasiums, and other venues where substantial numbers of people gather. In addition to video composition, audio sources embedded in HDMI signals can be passed to a venue's primary audio mixer for amplification in the house sound system. And with its friendly touch interface, the VR-400UHD is easy for school staff and students to learn.

Houses of Worship

The VR-400UHD is an effective system for displaying images and lyrics on large screens in churches. The guide function provides adjustments for smooth integration with screens that have longer horizontal dimensions than a 16:9 ratio. Using Dual mode, managing the content on two screens independently is simple. And with simultaneous 4K streaming, you can broadcast services live and capture them for later distribution on social media.

Corporate/Enterprise

The VR-400UHD is ideal for boardroom meetings and event spaces where high-quality video is required. In addition, up to six microphones can be connected, eliminating the need for external audio mixers in many situations. With the USB-C output, presentations can be streamed in 4K to remote viewers or archived for later distribution. The intuitive interface further reduces production costs, allowing in-house employees to learn and operate the switcher with minimal study.
