Roland XS-42H Matrix Switcher 4 x 2 HDMI

Roland

₱115,067.00

ORDER BASIS. Processing time: 90-120 days

This item cannot be checked out. For availability, inquiries and interested buyers, kindly chat us on our FB messenger Henry's Cameras PH or send us an email at sales@henryscameraphoto.com.

0% 3mos BDO, UNIONBANK, HSBC ₱38,355.67/mo.

Product Highlights

4 x HDMI Inputs / 2 x HDMI Outputs
Supports up to 1080p/60 and WUXGA/60
Auto Input Detection
Displays More Content Using Two Displays
Browser-Based Remote Control
Save Meeting Presets for One-Push Recall
Audio Switches Automatically with Video
RCA Audio Input & Output
Defaults to Stored Image if Unlinked

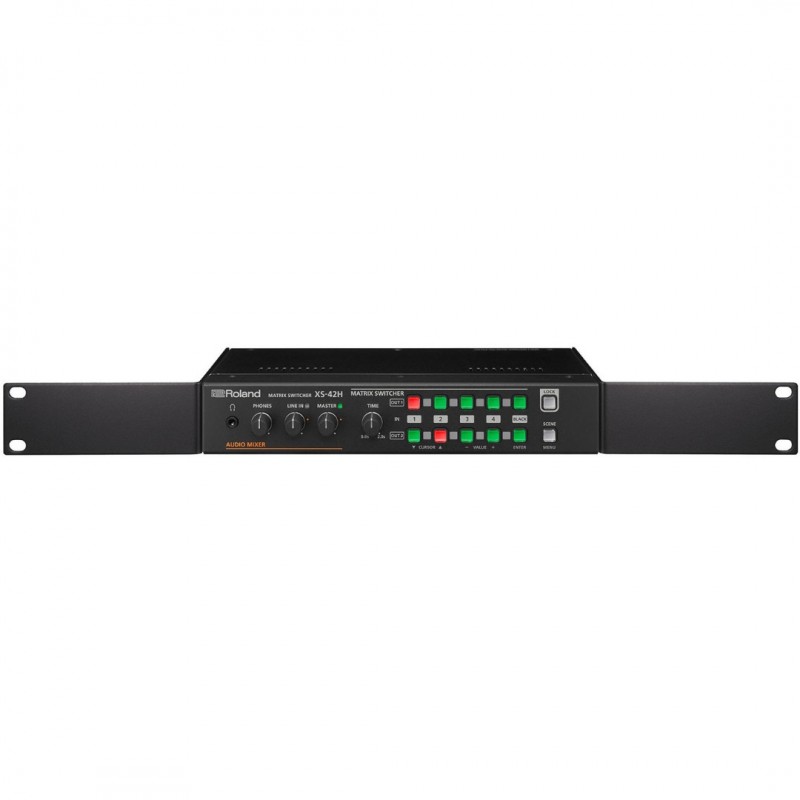

Compact Design Includes Mounting Bracket

Quantity

Input

Audio Inputs	1x 2RCA Stereo Analog Female
Embedded Audio Input	HDMI: 4-Channel
Input Audio Format	LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit
Input Video Format	HDMI (10-Bit 4:4:4 RGB, YCC) WUXGA (1920 x 1200) at 60 fps 1080p at 50/59.94/60 fps 1080i at 50/59.94 fps UXGA (1600 x 1200) at 60 fps SXGA+ (1400 x 1050) at 60 fps FWXGA (1366 x 768) at 60 fps SXVGA (1280 x 1024) at 60 fps WXGA (1280 x 800) at 60 fps 720p at 50/59.94 fps XGA (1024 x 768) at 60 fps SVGA (800 x 600) at 60 fps 576p at 50 fps 480p at 59.94 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps
Number of Video Input Sources	4
Video Inputs	4x HDMI

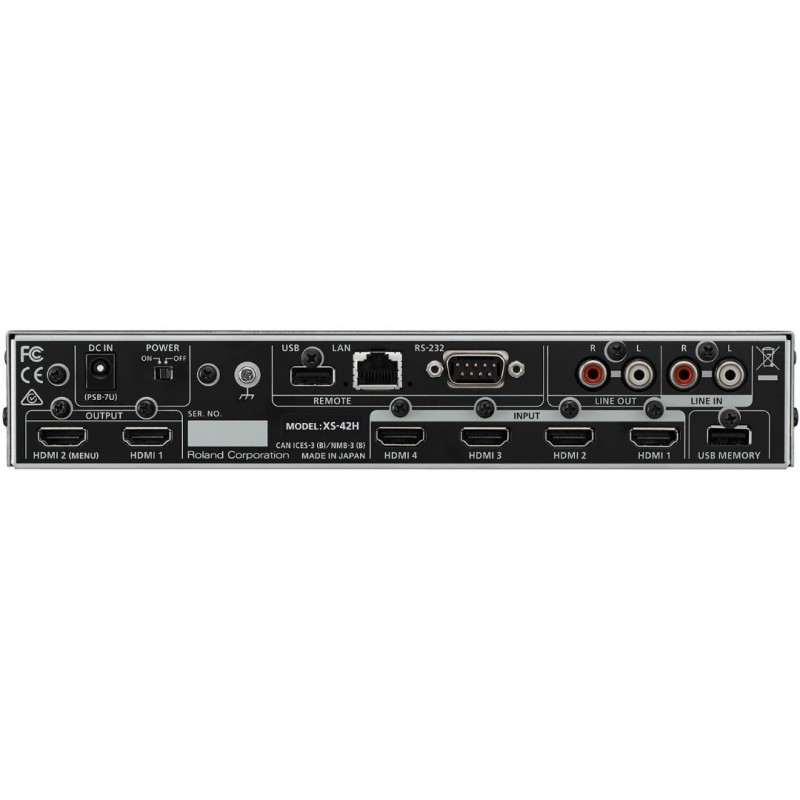

Inputs / Outputs

Other I/O

1x DE-9/DB-9 Control 1x RJ45 LAN 1x USB-A Input/Output

Output

Audio Outputs	1x 2RCA Stereo Analog Female 1x 1/8" / 3.5 mm TRS Stereo Analog Female
Video Output Channels	2
Video Outputs	2x HDMI

Power

Power Consumption

2.1 A 25 W

Processing

Color Processing	10-Bit 4:4:4 RGB 10-Bit 4:4:4 YCbCr
Switching Type	Pushbutton

General

Audio Mixing	4-Channel Mixing
Dimension	9.5 x 4.9 x 1.7" / 242 x 125 x 44 mm
Effect Types	Transition
Operating Conditions	32 to 104°F / 0 to 40°C
Weight	2.6 lb / 1.2 kg

Designed for meetings and huddle spaces, Roland's XS-42H Matrix Switcher 4 x 2 HDMI enables you to switch up to four HDMI sources to one or two output displays. This compact unit features auto source detection, source scaling, and web-based browser setup and wireless control using your tablet, laptop, or smartphone.

The XS-42H Switcher supports multiple video resolutions up to 1080p60, offers mix and cut transitions, and accepts still image and logo input via a USB port. Use the internal audio mixer to adjust the embedded HDMI audio and output audio via the RCA connections to external speakers.

The XS-42H Switcher's dual HDMI outputs can be used to present complementary content like documents, a website window, or video conferencing in addition to your main speaker or presentation. A default input source can be set to display before each use and a still photo or your company logo can be input for automatic display if the XS-42H Switcher is unlinked from your computer.

4 x 2 Switcher

Switch up to four HDMI inputs to one or two outputs

Up to 1080p60 Video

Supports multiple video resolutions up to 1080p60

Automatic Display

Auto Input Detection enables content to display automatically

Network Control

Browser-based network control for remote switching and simple set up using tablet, laptop, or smartphone

Audio Features

Internal audio mixer, RCA inputs/outputs for embedding and de-embedding audio

Presets

One-button recall of saved meeting presets
