Accessories
| Frequency Range |
Non-DFS Frequencies, 2.4 to 2.4835 GHz, 5.725 to 5.85 GHz, DFS Frequencies, 5.47 to 5.725 GHz |
| RF Power |
30 dBm |
Connectivity
Format Support
| Audio Format |
PCM Audio |
| Video Format |
HDMI/SDI/USB, 1080p: 60/59.94/50/30/29.97/25/24/23.98, 1080i: 60/59.94/50, 720p: 60/59.94/50 |
Inputs / Outputs
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output |
| Embedded Audio |
HDMI/SDI/USB/Wireless |
| Other I/O |
1x USB-C (Firmware) Input |
| Power I/O |
1x USB-C (9 VDC / 2 A) Input |
| Video I/O |
1x HDMI Input, 1x BNC (3G-SDI) Input |
Power
| Input Power |
6.8 to 17.2 VDC, 9 VDC at 2 A |
Wireless
| Channel Bandwidth |
20 MHz |
| Wi-Fi |
Wi-Fi 6 (802.11ax): Tri-Band (2.4 & 5 + 5 GHz) with MU-MIMO Support (2 x 2) |
General
| Dimension |
3.4 x 2.5 x 1.3" / 86.5 x 64 x 32 mm (Excluding Antenna) |
| Latency |
35 ms |
| Mobile App Compatible |
Yes: Android & iOS |
| Operating Conditions |
32 to 104°F / 0 to 40°C |
| Weight |
5.11 oz / 145.00 g, Including Antenna |
| Wireless Range |
1.9 Miles / 3 km (Line-of-Sight), 656.2' / 200 m (Without Quality Loss) |
| Material |
Plastic |

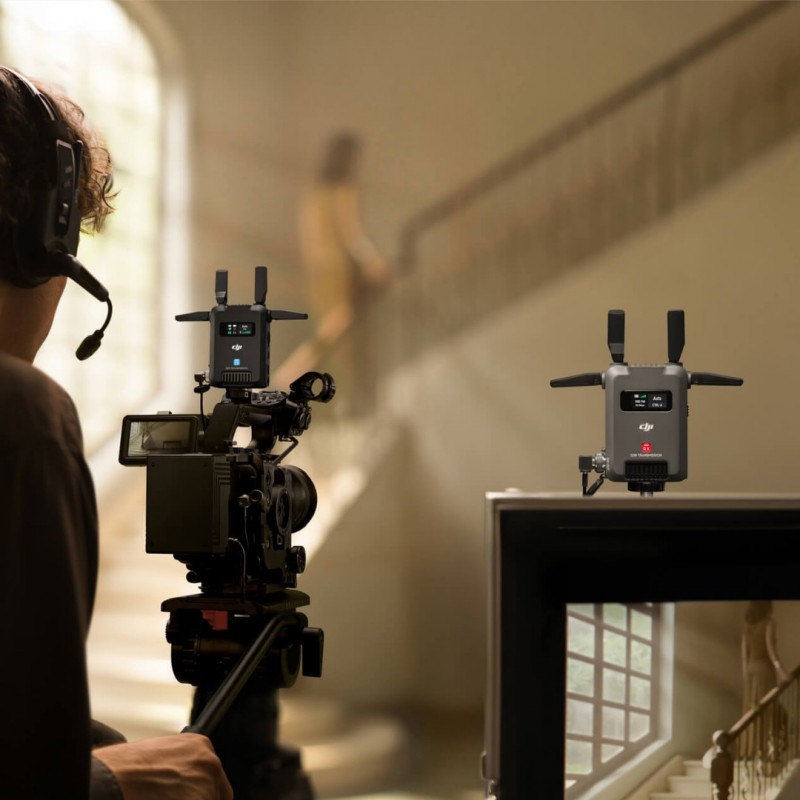

For stable, high-quality video transmission on a small-to-medium-sized shooting set, the SDR Transmission Transmitter from DJI is designed for long-range transmission of footage up to 1080p60 resolution using DJI's proprietary technology. SDR (Software Defined Radio) transmission uses a tri-bandwidth (DFS, 2.4 GHz, and 5.8 GHz) automatic frequency-hopping system, resulting in high penetration and distances up to 1.9 miles. The system is ideal for transmitting footage from a camera rig to an unlimited number of receivers or mobile devices, especially on crowded sets or around dense architecture that would otherwise overwhelm a conventional consumer Wi-Fi-based solution.
