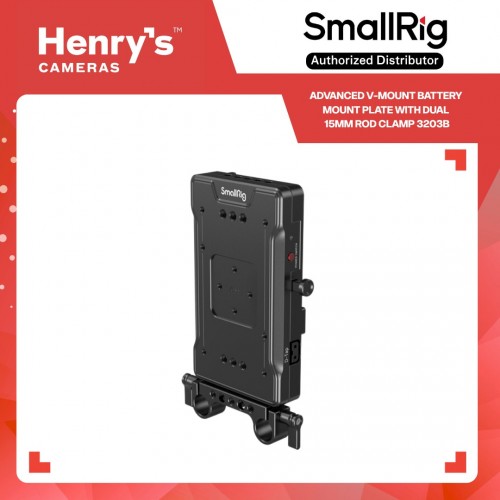

SmallRig Advanced V-Mount Battery Mount Plate with Dual 15mm Rod Clamp 3203B

SmallRig
  • ₱7,140.00

  • 0% 3mos BDO, UNIONBANK, HSBC ₱2,380.00/mo.

Product Highlights
  • Power Your Rig with V-Mount Batteries
  • 14.8V D-Tap & 65W PD USB-C Input/Outputs
  • 1 x 8V, 3A & 2 x 12V, 3A Barrel Outputs
  • 36W Quick Charge USB-A Output
  • 15mm LWS Rod Clamp on Bottom
  • 1/4"-20 & M4 Threads on Plate/Clamp
  • Status Indicator Light
  • DC Overcurrent Protection
  • Durable Aluminum Construction
Quantity

Inputs / Outputs

Inputs/Outputs 1x D-Tap/P-Tap Output, 3x DC Jack Output, 1x USB-C Output, 1x USB-A Output

Mounting

Accessory Mounting 1/4"-20 Female
Plate Rear Mount 1/4"-20 Female, 15 mm Rod Clamp

General

Dimension 6.64 x 4.3 x 1.3" / 16.87 x 10.8 x 3.3 cm
Plate Front / Battery Mount V-Mount
Weight 11.9 oz / 337 g
Material Aluminum Alloy
Warranty 7 Days

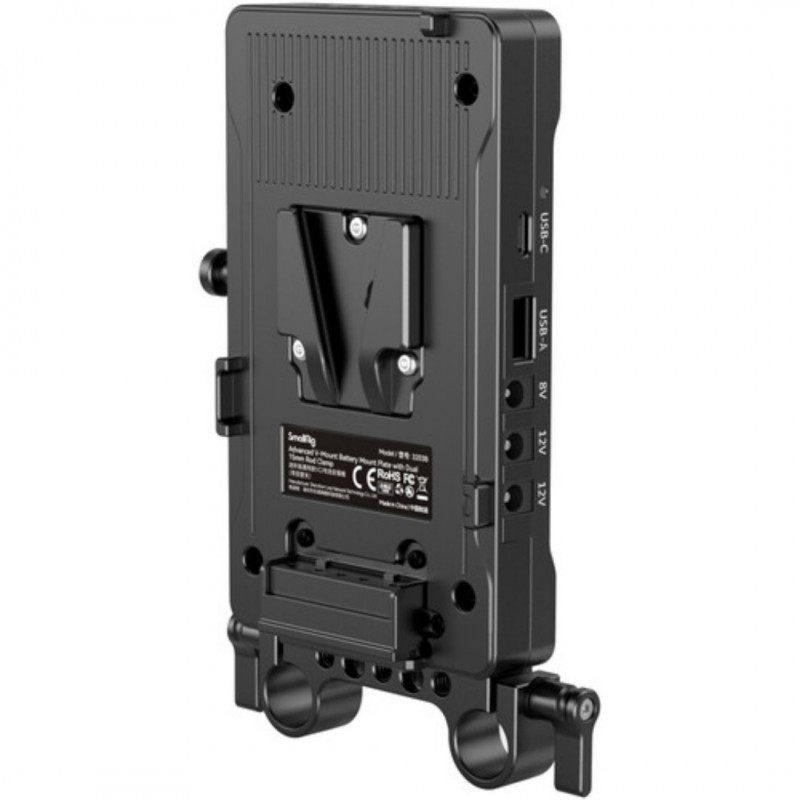

Power your camera and a variety of accessories from a single high-capacity V-mount battery with SmallRig's V-Mount Battery Adapter Plate with Dual 15mm Rod Clamp, which adds USB-C I/O with up to 65W of output and a QC protocol compatible USB-A port that can supply up to 36W of power. The battery plate provides a V-mount for a single battery and one 14.8V D-Tap output rated at 5A of current or up to 10A max when connected to a power supply. Additionally, the battery plate features three barrel outputs—one 8V and two 12V outputs at 3A on the side of the plate to supply power to all your accessories.


The aluminum plate features six 1/4"-20 and ten M4 threaded holes on the back to mount it onto arms, cages, clamps, or rigs. An additional five 1/4"-20 threads occupy the top and bottom for further mounting options. The 15mm LWS rod clamp allows you to mount and release the plate quickly from standard, separately available 15mm LWS rods with locking levers. The plate also features a power button on the side and a power indicator light that changes color depending on whether it is fast charging or discharging. The power indicator light also flashes when exceeding its operating temperature of 150°F to ensure longevity.
