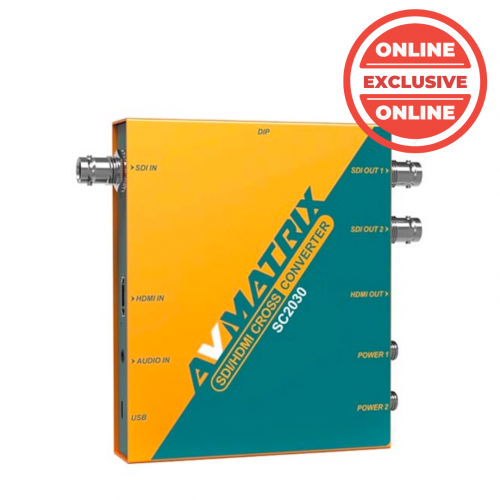

AVMatrix SC2030 3G-­SDI-­HDMI Scaling Cross Converter

AVMatrix
  • ₱7,695.00

  • ₱8,100.00
  • -5%
  • In the box
    AVMATRIX SC2030 3G-SDI/HDMI Scaling Cross Converter
  • 0% 3mos BDO, BPI, CITI, HSBC ₱2,565.00/mo.

Product Highlights
  • HDMI & 3G-SDI Input, 3.5mm Audio Input
  • Converts HDMI to SDI & SDI to HDMI
  • Upscales/Downscales, Converts Frame Rate
  • 1 x HDMI & 2 x SDI Outputs
  • DIP Switches Set Conversion Modes
  • USB Port for Power and Control
  • Dual Threaded Locking Power Connector
Quantity

Accessories

Input/Output Video Input: 1 x HDMI Female 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Female Video Output: 1 x HDMI Female 2 x BNC (3G-SDI / HD-SDI / SD-SDI) Female Audio Input: 1 x 1/8" / 3.5 mm TRS Stereo Analog Female Other: 1 x USB Micro-B Firmware, Control Input

General

Dimension 4.94 x 4.09 x 0.96" / 125.5 x 104 x 24.5 mm
Formats Input Video HDMI (4:4:4/4:2:2 RGB, YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps 576p: 50 fps NTSC: 59.94/60 fps SDI (4:4:4/4:2:2 RGB, YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps 576i / 625 lines: 50 fps 480i / 525 lines: 59.94 fps Video Output: HDMI / SDI (4:4:4/4:2:2 RGB, YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps
The SC2030 features one HDMI output and two 3G-SDI outputs, controllable via selectable conversion modes accessed by DIP switches, providing you with a variety of modes to fit your needs. It can also be controlled using a Windows computer with AV Matrix software via the micro-USB port, which is also used to power the unit. Dual threaded locking connectors allow you to power the unit with external power supplies for redundancy.

  • The HDMI or SDI input can be scaled and/or frame-rate converted to the required standard
  • One HDMI and two SD/HD/3G-SDI outputs
  • One 3.5mm analog audio input can be embedded in output
  • Use the DIP switches or a computer to change settings
  • The embedded audio pairs in the SDI and HDMI outputs can be rearranged as required
  • The unit incorporates a USB port for control, power, and firmware updates
  • Dual threaded locking connectors can provide redundant power
