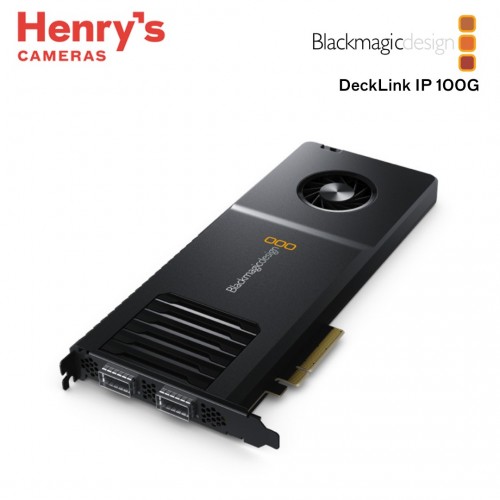

Blackmagic Design DeckLink IP 100G
Blackmagic
-
₱137,450.00
- 0% 3mos BDO, BPI, UNIONBANK, HSBC ₱45,816.67/mo.
This item cannot be checked out. For availability, inquiries and interested buyers, kindly chat us on our FB messenger Henry's Cameras PH or send us an email at sales@henryscameraphoto.com.
Product Highlights
- PCIe IP Video Capture & Playback Card
- Up to 8 Simultaneous UHD Video Channels
- Dual Redundant 100G Ethernet Ports
- GPU Direct RDMA Support Reduces Latency
- PCI Express Gen 4 Interface with 8 Lanes
- Ideal for 2110 IP Broadcast Systems
- Universal Video Software Compatibility
- Compatible with macOS, Windows & Linux
- Media Express Software Included
- Built-In Cooling Fan
Quantity
Format Support
| Audio Format | Unspecified Digital Signal Input/Output: 48 kHz / 24-Bit |
| Embedded Audio | IP: 2-Channel |
| Video Resolution | Fiber Input/Output (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 4096 x 2160 up to 120 fps |
Hardware
| OS Compatibility | Windows 10 to 11 macOS 14.0 macOS 15.0 or Later Linux |
Standards
| HDR Support | Yes: Hybrid Log Gamma |
General
| Dimension | 10.52" / 26.72 cm |
| Operating Conditions | 41 to 122°F / 5 to 50°C at 0 to 90% Humidity |
| Storage Conditions | -4 to 140°F / -20 to 60°C at 0 to 90% Humidity |
| Weight | 13.76 oz / 390 g |
| Warranty | 1 Year |
DeckLink IP 100G features 8 channels of Ultra HD video, in simultaneous capture and playback to 2110 IP broadcast systems via dual QSFP28 optical fiber Ethernet connections for full redundancy. It is designed to work with the highest quality video with support for capture and playback to popular formats such as Apple ProRes, DNxHD and even 10-bit uncompressed. DeckLink IP 100G connections are multi rate so they support all SD, HD and Ultra HD standards up to 2160p120.
