Blackmagic Design DeckLink SDI Micro
Blackmagic
-
₱10,650.00
- 0% 3mos BDO, BPI, UNIONBANK, HSBC ₱3,550.00/mo.
This item cannot be check out. For availability, inquiries and interested buyers, kindly chat us on our FB messenger Henry's Cameras PH or send us an email at sales@henryscameraphoto.com.
Product Highlights
- Small M.2 card for 3G-SDI
- Capture and play simultaneously in any SD/HD format up to 1080p60
- Equipped with black burst and 3 value sink reference input
- Great for portable solutions with small computers
Quantity
Connections
| M.2 | M.2 PCI Express 1 lane generation 3, compatible with B and M key type 2260 and 2280. |
Environment
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 75°C (-40°F to 167°F) |
Power
| Power Consumptions | 4.03 W (max) |
Standards
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
System
| Operating Systems | Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10, 64-bit. Windows 11. Linux |
General
| Warranty | 1 Year |

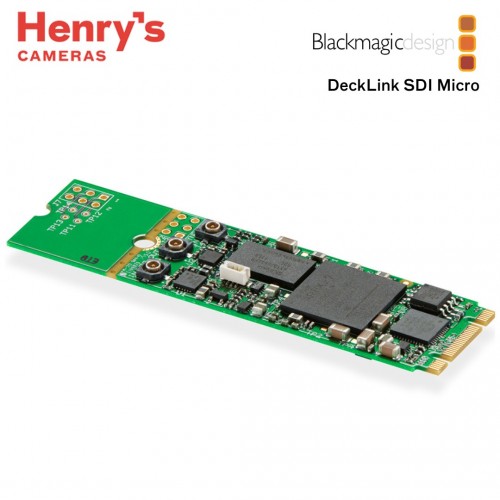

Miniature M.2 card with 3G‑SDI connections for simultaneous capture and playback in all SD and HD formats up to 1080p60. DeckLink SDI Micro also includes Black Burst and Tri‑Sync reference input and its miniature size makes it great for use on portable solutions which are based on compact computers!
