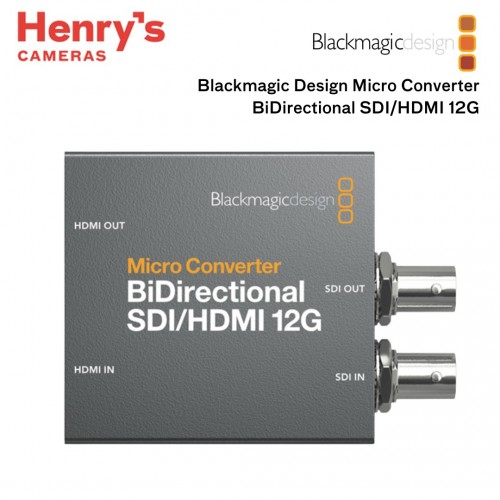

Blackmagic Design Micro Converter BiDirectional SDI/HDMI 12G
Blackmagic
-
₱12,550.00
- 0% 3mos BDO, BPI, UNIONBANK, HSBC ₱4,183.33/mo.
This item cannot be check out. For availability, inquiries and interested buyers, kindly chat us on our FB messenger Henry's Cameras PH or send us an email at sales@henryscameraphoto.com.
- Simultaneous SDI to HDMI & HDMI to SDI
- 1 x SD/HD/12G-SDI & 1x HDMI Input/Output
- Supports up to DCI/UHD 4K60 Video
- Blackmagic Camera Control, Tally Support
- SDI Re-Clocking/HDMI Timecode
- HDMI Copy Protection Support
- Automatic Input Signal Detection
- Embedded HDMI & SDI Input/Output
Control
| Tally Light | Yes |
Environment
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
Format Support
| Embedded Audio | HDMI/SDI |
| Input Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF at 25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 480i / 525 lines at 50 fps 576i / 625 lines at 59.94 fps |
| Output Video Format | SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF at 25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF at 25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 480i / 525 lines at 29.97 fps 576i / 625 lines at 25 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
Hardware
| OS Compatibility | macOS 10.15.15 or Later Windows 11.1 or Later |
Inputs / Outputs
| Audio I/O | No |
| Other I/O | 1x USB-C Firmware Input (Shared Power) |
| Video I/O | 1x BNC (12G-SDI) Female 1x HDMI (2.0) Female |
Power
| Power Consumption | Device: 5 W |
| Power I/O | 1x USB-C (4.4 to 5.2 VDC ) Input |
Standards
| HDCP Compatible | Yes: Version 2.2 |
| Video Standard Compliance | SMPTE 259M/292M/296M/424M/425M-A/425M-B |
General
| Dimension | 3.18 x 2.32 x 0.98" / 80.77 x 58.93 x 24.89 mm |
| Weight | 6.13 oz / 174 g |
| Warranty | 1 Year Warranty |
Easily combine SDI and HDMI components in your video setup with the Micro Converter BiDirectional SDI/HDMI 12G from Blackmagic Design. This compact bidirectional converter can convert SDI to HDMI and HDMI to SDI in all SD, HD, and UHD formats up to 2160p60. Since each conversion direction can be a different SD, HD, or UHD video standard, it's like getting two converters in one. It also offers camera control conversion for Blackmagic HDMI cameras like the Pocket Cinema Camera 4K or 6K, enabling you to use them with an SDI-based live switcher.
The pocket-sized Micro Converter BiDirectional SDI/HDMI 12G features HDMI timecode support, SDI re-clocking for stability over long cable runs, support for a wide range of pro broadcast resolutions, including cine-style 48 fps, and both HDMI and SDI embedded audio input and output. This converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. The converter is powered using a separately available power supply.
Features
Bidirectional Format Conversion
You can convert SDI to HDMI and HDMI to SDI in all SD, HD, and UHD formats up to 2160p60. Each conversion direction can be a different SD, HD, or UHD video standard, so it's like getting two converters in one.
Compact, Rugged Design
- Robust metal housing and rugged connectors.
- USB Type-C port for powering via a compatible component like a monitor or laptop.
- Updatable via the USB Type-C port and your Mac or PC.
Simultaneous Conversion
- Use the bidirectional Micro Converter to convert HDMI to 3G-SDI and 3G-SDI to HDMI simultaneously.
- Ideal for connecting HDMI consumer components to professional 3G-SDI equipment.
HDMI Camera Control
- Camera control conversion for the HDMI-output BMPCC 4K or 6K, enables use with an SDI-based live switcher.
- SDI & HDMI Timecode
- HD and SD timecode support.
- Converts HDMI timecode to SDI and vice versa.
SDI Re-Clocking
- Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs.
- Compatible with SMPTE 259M/292M/296M/424M/425M level A and B.
Wider Resolution Support
- SDI support from NTSC and PAL up to DCI 2Kp60.
- HDMI support from NTSC and PAL up to 1080p60.
Embedded Audio
- Supports embedded SDI and HDMI input and output.
- LED Indicators
- LED indicators for video and power signals.
Versatile Power Options
- Power from a monitor, laptop, or other component using the USB Type-C port.
- Powered using separately available power supply
